View larger
Images are for illustrative purposes only. Please refer to data sheet for details

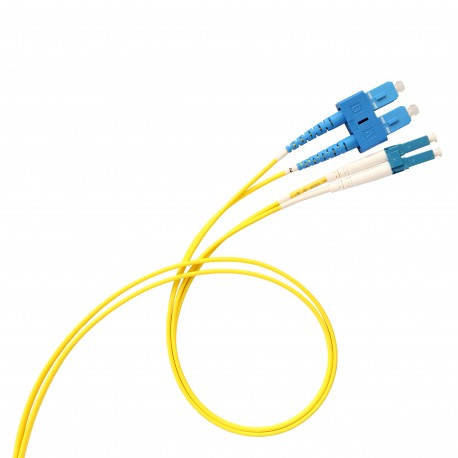

032530 LEGRAND LCS-LAT DUPLEX LC/SC OS2 1M UL
032530
032530
LEGRAND
5 Pcs.
LCS-LAT DUPLEX LC/SC OS2 1M UL
Duplex patch cord LC/SC OS2 1m Ultra
Automation > Fibre optic patch cord
OPTICAL FIBER
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Patch cables provide flexible interconnection to active equipment, passive optical devices, and cross-connects. Zirconium ferrule connectors made with precision polishing and factory assembly techniques ensure high transmission quality
| Type of fiber | Simple Mode |
|---|---|
| category | OS2 |
| Number of fibers | 2 |
| Outer diameter of individual fiber insulation | 2 mm |
| Cable type | Duplex |
| Longitude | 3 / |
| Connector Type Connector 1 | LC-Duplex |
| Connector Type Connector 2 | SC Duplex |
|---|---|
| Outer Cover Color | Yellow |
| Crease protection eyelet | Connected |
| Flame retardant according to IEC 60332-3-24 (Cat C) | Yes |
| Operating Temperature | -20-60 °C |
| Storage temperature | -20-60 °C |
| RAL number | 1018 |
| Feature Name | Feature Value |
|---|---|
| Number of fibres (EF000472) | 2 |
| Cable type (EF000081) | Duplex |
| Fibre type (EF000080) | Single mode |
| Category (EF001619) | OS2 |
| Colour outer sheath (EF001618) | Yellow |
| Flame retardant according to IEC 60332-3-24 (Cat C) (EF016496) | Yes |
| Outer diameter sheath single fibre (EF012067) | 2 mm |
| Anti-kink sleeve (EF002435) | Put-on |
| Length (EF001438) | 1 m |
| Type of connector connection 1 (EF002505) | LC-Duplex |
| Type of connector connection 2 (EF002506) | SC duplex |
