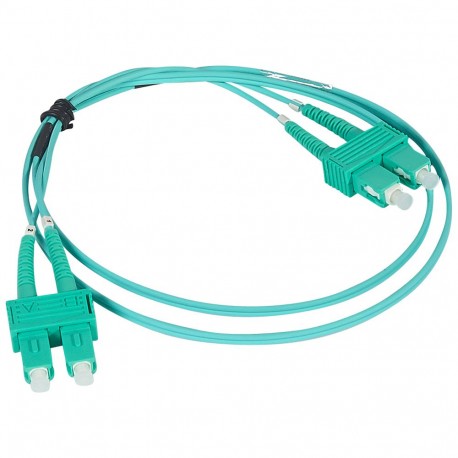

LEGRAND 032260 032260 LEGRAND LCS-LAT DUPLEX SC/SC OM4 1M CO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

032260 LEGRAND LCS-LAT DUPLEX SC/SC OM4 1M CO

032260

032260

LEGRAND

5 Pcs.

LCS-LAT DUPLEX SC/SC OM4 1M CO Duplex hose SC/SC OM4 1m Core

Automation > Fibre optic patch cord
OPTICAL FIBER

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 032260 LCS-LAT DUPLEX SC/SC OM4 1M CO is a multimode fiber optic patch cable deployed in local area networks to link active equipment and patch distribution frames. Technicians rely on these factory-terminated jumpers to establish robust, high-bandwidth optical connections in data centers and telecommunications rooms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of fibres (EF000472): 2
  • APC-version connection 2 (EF015704): No
  • APC-version connection 1 (EF015703): No
  • Cable type (EF000081): Duplex
  • Fibre type (EF000080): Multi mode 50/125
  • Category (EF001619): OM4
  • Colour outer sheath (EF001618): Turquoise
  • Outer diameter sheath single fibre (EF012067): 2 mm
  • Anti-kink sleeve (EF002435): Put-on
  • Length (EF001438): 1 m
  • Type of connector connection 1 (EF002505): SC duplex
  • Type of connector connection 2 (EF002506): SC duplex

More info

▲
Patch cables provide flexible interconnection to active equipment, passive optical devices, and cross-connects. Zirconium ferrule connectors made with precision polishing and factory assembly techniques ensure high transmission quality
Type of fiberMultimodal 50/125
categoryOM4
Number of fibers2
Outer diameter of individual fiber insulation2 mm
Cable typeDuplex
Longitude3 /
Connector Type Connector 1SC Duplex
Connector Type Connector 2SC Duplex
APC version 1 connectionNo
APC 2 Version ConnectionNo
Outer Cover ColorTurquoise
Crease protection eyeletConnected
Flame retardant according to IEC 60332-3-24 (Cat C)Yes
Operating Temperature-20-60 °C
Storage temperature-20-60 °C
RAL number1018
Communication Classification TypeNot applicable
