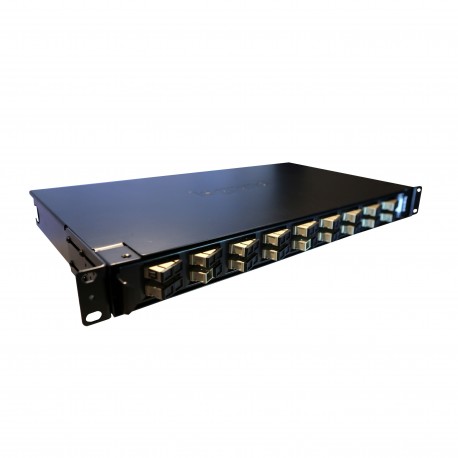

032172 LEGRAND LCS-BANDE ROT 18SC DX MULTI 1U
032172
032172
LEGRAND
1 Pcs.
LCS-BANDE ROT 18SC DX MULTI 1U
LCS³ equipped 19" optic drawer - rotating - 18 SC duplex multimode connectors for 36 fibres
Equipped optical tray 19" swivel 18 SC multimode duplex for 36 fibers
Automation > Patch panel fibre optic
OPTICAL FIBER
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)13.68
- Weight (g)4 540.00
Product characteristics
Equipped 19" fibre optic drawers- Metal 19” pre-equipped fibre optic drawers, 4 cable entries, supplied with screw fixing kit, 2 cable glands (Ø 13.5 and 16 mm), coiling system and splice cassette
- Panel and optical ports marked on dedicated marking area
- Supplied with reversible left or right opening
- Maximum capacity:
- 72 fibres in LC version
- 36 in SC version
- Depth 260 mm, height 1U
- SC duplex for 36 multimode fibres
General characteristics
Legrand cabling system, LCS³ fibre optic - 19" fibre optic drawers| Feature Name | Feature Value |
|---|---|
| With number of couplings/adapters (EF005037) | 2 |
| Height (EF000040) | 43.6 mm |
| Suitable for number of couplings/adapters (EF001583) | 36 |
| Number of height units (EF003561) | 1 |
| With pigtails (EF001582) | No |
| With front plate (EF001585) | No |
| Suitable for number of module inserts (EF007795) | 18 |
| Mounting method (EF000003) | 482.6 mm (19 inch) mounting |
| With housing (EF001102) | No |
| Type of connector external (EF008068) | SC duplex |
| Fibre class (EF007760) | OM4 |
| Type of connector interior (EF008069) | SC duplex |
| Fibre type (EF000080) | Multi mode 62.5/125 |
| Depth (EF000049) | 275.8 mm |
| Colour (EF000007) | Beige |
| APC-version (EF001569) | No |
| Width (EF000008) | 482.6 mm |
