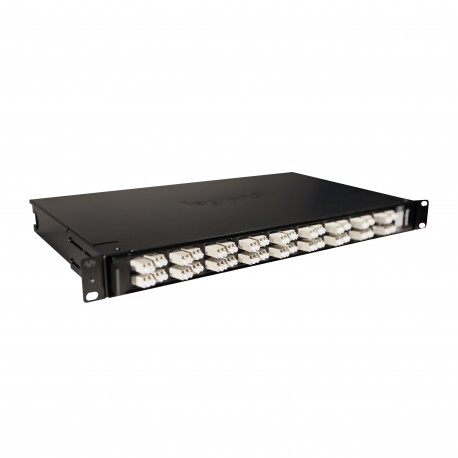

LEGRAND 032171 032171 LEGRAND LCS-BANDE ROT 36LC DX MULTI 1U View larger
Images are for illustrative purposes only. Please refer to data sheet for details

032171 LEGRAND LCS-BANDE ROT 36LC DX MULTI 1U

032171

032171

LEGRAND

1 Pcs.

LCS-BANDE ROT 36LC DX MULTI 1U LCS³ equipped 19" optic drawer - rotating - 36 LC duplex multimode connectors for 72 fibres Equipped optical tray 19" swivel 36 LC multimode duplex for 72 fibers

Automation > Patch panel fibre optic
OPTICAL FIBER

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 032171 LEGRAND LCS-BANDE ROT 36LC DX MULTI 1U serves as a high-density fiber patch panel insert designed to manage extensive optical cabling systems in 19-inch racks and telecommunication rooms. It supports orderly fiber routing and reliable interconnection across multiple channels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With number of couplings/adapters (EF005037): 2
  • Height (EF000040): 43.6 mm
  • Suitable for number of couplings/adapters (EF001583): 72
  • Number of height units (EF003561): 1
  • With pigtails (EF001582): No
  • With front plate (EF001585): No
  • Suitable for number of module inserts (EF007795): 36
  • Mounting method (EF000003): 482.6 mm (19 inch) mounting
  • With housing (EF001102): No
  • Type of connector external (EF008068): LC-Duplex
  • Fibre class (EF007760): OM4
  • Type of connector interior (EF008069): LC-Duplex
  • Fibre type (EF000080): Multi mode 62.5/125
  • Depth (EF000049): 275.8 mm
  • Colour (EF000007): Beige
  • APC-version (EF001569): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)13.68
  • Weight (g)4 527.00
Product characteristics
Equipped 19" fibre optic drawers
  • Metal 19” pre-equipped fibre optic drawers, 4 cable entries, supplied with screw fixing kit, 2 cable glands (Ø 13.5 and 16 mm), coiling system and splice cassette
  • Panel and optical ports marked on dedicated marking area
Rotating
  • Supplied with reversible left or right opening
  • Maximum capacity:
    • 72 fibres in LC version
    • 36 in SC version
  • Depth 260 mm, height 1U
  • LC duplex for 72 multimode fibres
General characteristics
Legrand cabling system, LCS³ fibre optic - 19" fibre optic drawers
