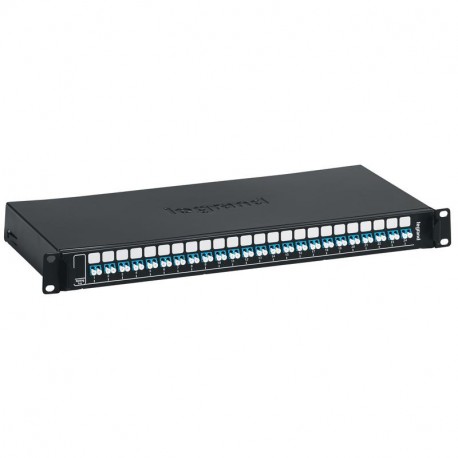

LEGRAND 032165 032165 LEGRAND LCS-BANDE 24LC DUPLEX MONO 1U View larger
Images are for illustrative purposes only. Please refer to data sheet for details

032165 LEGRAND LCS-BANDE 24LC DUPLEX MONO 1U

032165

032165

LEGRAND

1 Pcs.

LCS-BANDE 24LC DUPLEX MONO 1U LCS³ equipped 19" optic drawer - sliding - 24 LC duplex single-mode connectors for 48 fibres Equipped optical tray 19" sliding 24 LC single-mode duplex for 48 fibers

Automation > Patch panel fibre optic
OPTICAL FIBER

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 032165 LCS-BANDE 24LC DUPLEX MONO 1U is a high-density 19-inch patch panel designed to support extensive single-mode LC duplex connections. It optimizes rack space efficiency while maintaining secure fiber management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With number of couplings/adapters (EF005037): 2
  • Height (EF000040): 43.6 mm
  • Suitable for number of couplings/adapters (EF001583): 48
  • Number of height units (EF003561): 1
  • With pigtails (EF001582): No
  • With front plate (EF001585): No
  • Suitable for number of module inserts (EF007795): 24
  • Mounting method (EF000003): 482.6 mm (19 inch) mounting
  • With housing (EF001102): No
  • Type of connector external (EF008068): LC-Duplex
  • Fibre class (EF007760): OS2
  • Type of connector interior (EF008069): LC-Duplex
  • Fibre type (EF000080): Single mode
  • Depth (EF000049): 238.6 mm
  • Colour (EF000007): Black
  • APC-version (EF001569): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)13.68
  • Weight (g)3 416.00
Product characteristics
Equipped 19" fibre optic drawers
  • Metal 19” pre-equipped fibre optic drawers, 4 cable entries, supplied with screw fixing kit, 2 cable glands (Ø 13.5 and 16 mm), coiling system and splice cassette
  • Panel and optical ports marked on dedicated marking area
Sliding
  • End stop at a 30° angle
  • Maximum capacity:
    • 48 fibres in LC and ST versions
    • 24 in SC version
  • Depth 220 mm, height 1U
  • LC duplex for 48 single-mode fibres
General characteristics
Legrand cabling system, LCS³ fibre optic - 19" fibre optic drawers
