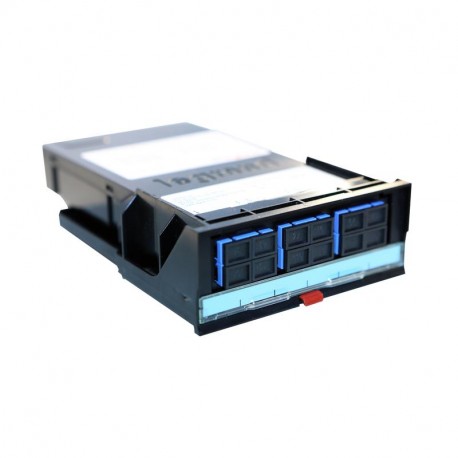

LEGRAND 032145 032145 LEGRAND LCS-CASSETTE 12SC MTP OS2 HD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

032145 LEGRAND LCS-CASSETTE 12SC MTP OS2 HD

032145

032145

LEGRAND

1 Pcs.

LCS-CASSETTE 12SC MTP OS2 HD LCS³ MTP preterminated cassette - MPO compatible - single-mode OS2 12 SC Insulating surround

Automation > Patch panel fibre optic
OPTICAL FIBER

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 032145 is a splice cassette engineered for organizing high-density single-mode fiber terminations. Cassettes are widely integrated into structured cabling frameworks to manage fusion splices cleanly and maximize cabinet space efficiency.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With number of couplings/adapters (EF005037): 12
  • Height (EF000040): 43.7 mm
  • Suitable for number of couplings/adapters (EF001583): 12
  • With pigtails (EF001582): No
  • With front plate (EF001585): No
  • With housing (EF001102): Yes
  • Type of connector external (EF008068): SC duplex
  • Fibre class (EF007760): OS2
  • Type of connector interior (EF008069): MT/MPO
  • Fibre type (EF000080): Single mode
  • Depth (EF000049): 196 mm
  • Colour (EF000007): Black
  • RAL-number (EF000116): 9017
  • Width (EF000008): 110 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.835
  • Weight (g)310.00
Product characteristics
MTP High Density cassettes (compatible with MPO)
  • For installation in modular panel Cat. No 0 321 40
  • Sliding cassettes which can be removed automatically by simply pressing them, simplifying installation and maintenance
  • Removable from the front and back
  • High-performance MTP cassettes, low insertion loss
  • Prewired, equipped at rear with one or two male MTP connectors with 12 fibres
  • LC or SC connectors at the front
  • MTP is a registered trademark of US Conec Ltd
Single-mode OS2 cassettes (9/125 μm), A/C polarity
  • 12 SC fibres
General characteristics
Legrand cabling system, LCS³ fibre optic - 19” High Density fibre optic panel
