View larger
Images are for illustrative purposes only. Please refer to data sheet for details

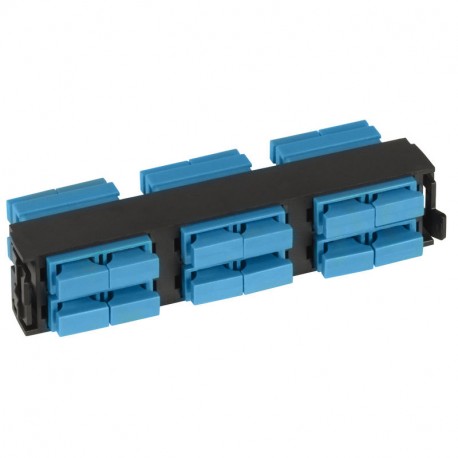

032111 LEGRAND LCS-SC DUPLEX HD 12-FIBER MONO
032111
032111
LEGRAND
1 Pcs.
LCS-SC DUPLEX HD 12-FIBER MONO
LCS³ fibre optic block - single-mode fibre optic block - SC duplex high density block for 12 single-mode fibre optics
SC duplex single-mode single-mode fiber optic blocks for 12 fibers
Automation > Patch panel fibre optic
OPTICAL FIBER
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.294
- Weight (g)62.00
Product characteristics
Fibre optic blocks- To be clipped directly onto modular fibre optic drawers to be equipped Cat. Nos 0 321 00/01 or onto fibre optic splice cassette Cat. No 0 321 41
- High Density SC duplex block for 12 single-mode fibres
General characteristics
Legrand cabling system, LCS³ fibre optic - 19" fibre optic drawers| Feature Name | Feature Value |
|---|---|
| With number of couplings/adapters (EF005037) | 12 |
| Height (EF000040) | 23 mm |
| Suitable for number of couplings/adapters (EF001583) | 12 |
| With pigtails (EF001582) | No |
| With front plate (EF001585) | No |
| Mounting method (EF000003) | Other |
| With housing (EF001102) | Yes |
| Type of connector external (EF008068) | SC duplex |
| Type of connector interior (EF008069) | SC duplex |
| Fibre type (EF000080) | Single mode |
| Depth (EF000049) | 33.3 mm |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9017 |
| Width (EF000008) | 108.8 mm |
