View larger
Images are for illustrative purposes only. Please refer to data sheet for details

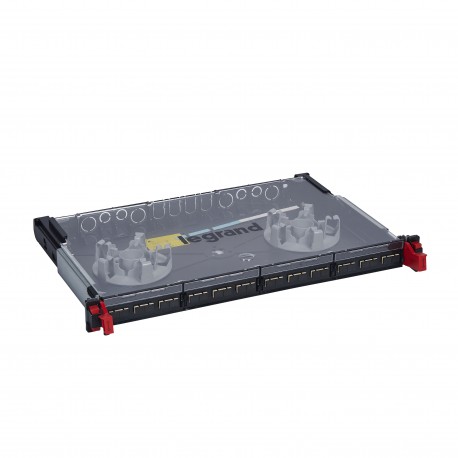

032102 LEGRAND LCS-BANDE MOD 12SC DX MULTI 1U
032102
032102
LEGRAND
2 Pcs.
LCS-BANDE MOD 12SC DX MULTI 1U
LCS³ 19" modular optic drawer - sliding - equipped - 12 SC duplex multimode connectors for 24 fibres
Modular optical tray 19" equipped with 12 SC multimode duplex for 24 fibers
Automation > Patch panel fibre optic
OPTICAL FIBER
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)2
- Volume (dm3)44.574
- Weight (g)7 790.00
Product characteristics
Flat and angled 19” modular fibre optic drawers- Metal 19" modular fibre optic drawers, 8 cable entries, supplied with 2 cable glands (Ø 13.5 and 9 mm), coiling system
- Equipped with the new-generation Quick-Fix system for automatic (screwless) mounting on enclosure orcabinet uprights
- Supplied with numbered labels
- Maximum capacity: 96 fibres in LC version, 48 in SC version or 24 in ST version
- Depth 290 mm, height 1U
- End stop at a 20° angle
- SC duplex for 24 multimode fibres
General characteristics
Legrand cabling system, LCS³ fibre optic - 19" fibre optic drawers| Feature Name | Feature Value |
|---|---|
| With number of couplings/adapters (EF005037) | 12 |
| Height (EF000040) | 43.65 mm |
| Suitable for number of couplings/adapters (EF001583) | 12 |
| Number of height units (EF003561) | 1 |
| With pigtails (EF001582) | No |
| With front plate (EF001585) | No |
| Suitable for number of module inserts (EF007795) | 4 |
| Mounting method (EF000003) | 482.6 mm (19 inch) mounting |
| With housing (EF001102) | Yes |
| Type of connector external (EF008068) | SC duplex |
| Type of connector interior (EF008069) | SC duplex |
| Fibre type (EF000080) | Multi mode 50/125 |
| Depth (EF000049) | 334 mm |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9017 |
| Width (EF000008) | 482.6 mm |
