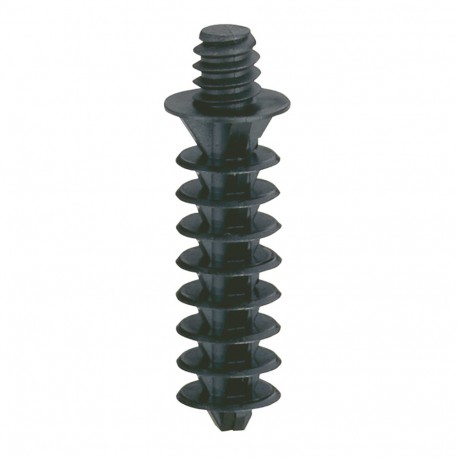

031957 LEGRAND SCREW-LOCK COLLAR
031957
031957
LEGRAND
100 Pcs.
SCREW-LOCK COLLAR
Screw-in plug - for Colson cable ties - U.V. protected - Ø8 mm drilling
Threaded plug or screw for Colson flanges. Ø8mm perforation. Black
Automation > All-purpose plug
FLANGES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)100
- Volume (dm3)0.848
- Weight (g)139.00
Product characteristics
Black U.V. protected screw-in plug- For fixing screw-on base and cable ties with base
- Ø8 mm drilling (Ø7 mm smooth material)
- Threaded head O6.6 mm pitch 150
- Supplied with punch for inserting pin
General characteristics
Colson™ - installation cable ties| Feature Name | Feature Value |
|---|---|
| Suitable for fixing with cable ties (EF007799) | No |
| Drill hole depth (EF004563) | 29.3 mm |
| Drill hole diameter (EF004562) | 8 mm |
| Material (EF002169) | Plastic |
| With screw (EF000385) | Yes |
| Material quality (EF001257) | Other |
| Suitable for coach screw (EF005797) | No |
| Model (EF000010) | Other |
| Suitable for screw diameter (EF005261) | 6.6 mm |
| Length (EF001438) | 37 mm |
