View larger
Images are for illustrative purposes only. Please refer to data sheet for details

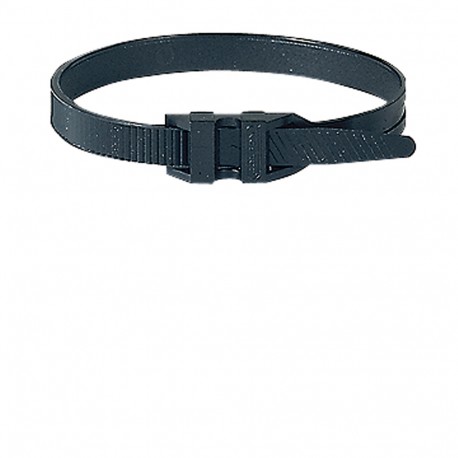

031921 LEGRAND COLLARS COLSON 9X750
031921
031921
LEGRAND
100 Pcs.
COLLARS COLSON 9X750
Colson Polyamide 12 Cable Tie 750mm x 9mm Black
Colson Flange. Width 9mm Length 750mm. Black
Cables > Cable tie
FLANGES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Band width | 9 mm |
|---|---|
| Length belt/tape/tie | 750 mm |
| Tie thickness | 2.4 mm |
| Min. tensile strength | 530 N |
| Operating temperature | -40-85 °C |
| Mounting temperature | -30-85 °C |
| Model | External toothing |
| Band closure | Double lock head |
| Material | Plastic |
| Material quality | Polyamide flame retardant |
| Surface protection | Untreated |
|---|---|
| UV-stable according to ASTM D6779 | Yes |
| Halogen free | Yes |
| Colour | Black |
| Transparent | No |
| Fluorescent | No |
| Text strip | None |
| Releasable closure | No |
| Type of fastening | Dowel |
| UL approval | Yes |
| Feature Name | Feature Value |
|---|---|
| Length belt/tape/tie (EF000063) | 750 mm |
| Fluorescent (EF009518) | No |
| Material (EF002169) | Plastic |
| Type of fastening (EF002442) | None |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Polyamide (PA) |
| Mounting temperature (EF008326) | -30 °C |
| Band closure (EF007673) | Plastic lip/-cam |
| Transparent (EF006243) | No |
| Band width (EF008160) | 9 mm |
| Surface protection (EF000139) | Untreated |
| Model (EF000010) | External toothing |
| Tie thickness (EF004499) | 2 mm |
| UV-stable according to ASTM D6779 (EF008099) | Yes |
| Operating temperature (EF002393) | -40 °C |
| UL approval (EF008093) | No |
| Releasable closure (EF004907) | No |
| Min. tensile strength (EF015259) | 530 N |
| Colour (EF000007) | Black |
| Text strip (EF000129) | None |
