View larger
Images are for illustrative purposes only. Please refer to data sheet for details

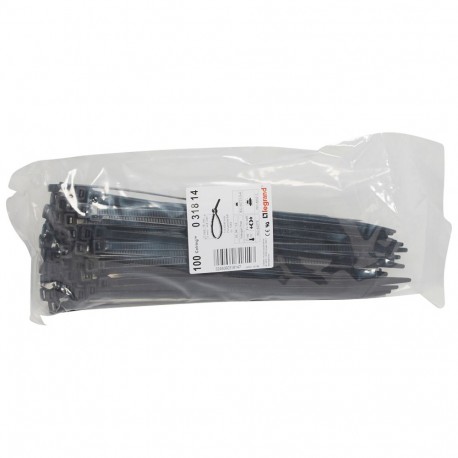

031814 LEGRAND COLRING BLACK 7,6X290
031814
031814
LEGRAND
100 Pcs.
COLRING BLACK 7,6X290
Cable tie Colring - width 7.6 mm - L. 290 mm - sachet 100 pcs - black
Colring Flange. Width 7.6mm Length 290mm. Black
Cables > Cable tie
FLANGES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1500
- Volume (dm3)20.874
- Weight (g)7 050.00
Product characteristics
Colring black cable ties- High temperature
- UV protected
- Width : 7.6 mm
- Flat length : 290 mm
- Ø grip capacity Max. : 73 mm
- Ø grip capacity Min. : 8 mm
General characteristics
Colring™ equipment cable ties- For series assembly of electrical cables
- With self blocking head and internal teeth
- Conform to IEC/EN 62275 (NFC 68-146)
| Feature Name | Feature Value |
|---|---|
| Length belt/tape/tie (EF000063) | 290 mm |
| Material (EF002169) | Plastic |
| Type of fastening (EF002442) | None |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Polyamide (PA) |
| Mounting temperature (EF008326) | 0 °C |
| Band closure (EF007673) | Plastic lip/-cam |
| Transparent (EF006243) | No |
| Band width (EF008160) | 7.6 mm |
| Surface protection (EF000139) | Untreated |
| Model (EF000010) | Internal toothing |
| Tie thickness (EF004499) | 1.9 mm |
| UV-stable according to ASTM D6779 (EF008099) | Yes |
| Operating temperature (EF002393) | -15 °C |
| UL approval (EF008093) | Yes |
| Releasable closure (EF004907) | No |
| Min. tensile strength (EF015259) | 530 N |
| Colour (EF000007) | Black |
| Text strip (EF000129) | None |
