View larger
Images are for illustrative purposes only. Please refer to data sheet for details

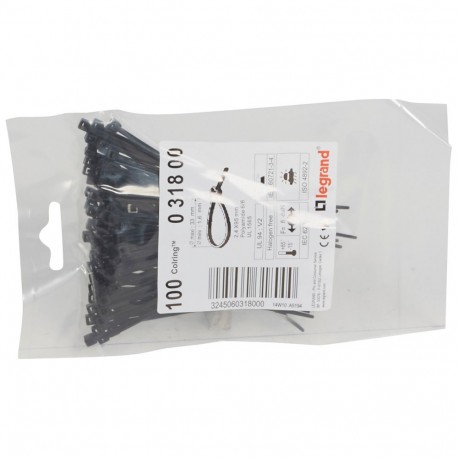

031800 LEGRAND COLLAR BLACK 2,4X95
031800
031800
LEGRAND
100 Pcs.
COLLAR BLACK 2,4X95
Cable tie Colring - width 2.4 mm - L. 95 mm - sachet 100 pcs - black
Colring Flange. Width 2.4mm Length 95mm. Black
Cables > Cable tie
FLANGES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)100
- Volume (dm3)0.273
- Weight (g)32.00
Product characteristics
Colring black cable ties- High temperature
- UV protected
- Width : 2.4 mm
- Flat length : 95 mm
- Ø grip capacity Max. : 20 mm
- Ø grip capacity Min. : 3 mm
General characteristics
Colring™ equipment cable ties- For series assembly of electrical cables
- With self blocking head and internal teeth
- Conform to IEC/EN 62275 (NFC 68-146)
| Feature Name | Feature Value |
|---|---|
| Length belt/tape/tie (EF000063) | 95 mm |
| Material (EF002169) | Plastic |
| Type of fastening (EF002442) | None |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Polyamide (PA) |
| Mounting temperature (EF008326) | 0 °C |
| Band closure (EF007673) | Plastic lip/-cam |
| Transparent (EF006243) | No |
| Band width (EF008160) | 2.4 mm |
| Surface protection (EF000139) | Untreated |
| Model (EF000010) | Internal toothing |
| Tie thickness (EF004499) | 1.1 mm |
| UV-stable according to ASTM D6779 (EF008099) | Yes |
| Operating temperature (EF002393) | -15 °C |
| UL approval (EF008093) | Yes |
| Releasable closure (EF004907) | No |
| Min. tensile strength (EF015259) | 80 N |
| Colour (EF000007) | Black |
| Text strip (EF000129) | None |
