View larger
Images are for illustrative purposes only. Please refer to data sheet for details

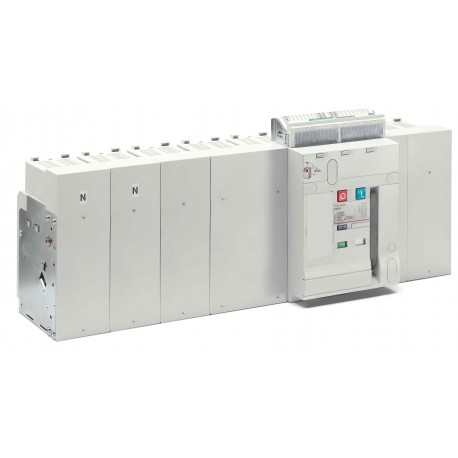

028971 LEGRAND DMX3-I 6300 FIXED 4POLOS TO 6300 A
028971
028971
LEGRAND
1 Pcs.
DMX3-I 6300 FIXED 4POLOS TO 6300 A
Trip free switch DMX³-I 6300 - fixed version - 4P -6300 A
Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)546.00
- Weight (g)157 300.00
Product characteristics
Fixed version- Supplied with:
- 4 auxiliary contacts: NO/NC
- flat rear terminals for connection with bars
- door sealing
- Frame 6300
- 4P
- In : 6300 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A- Conform to IEC 60947-3
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 100 kA |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | Yes |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Push button |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 2520 kW |
| Rated permanent current Iu (EF001389) | 6300 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | Yes |
| Colour control element (EF007167) | Grey |
| Rated permanent current at AC-21, 400 V (EF009165) | 6300 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 230 V |
| Degree of protection (IP), front side (EF003118) | IP30 |
