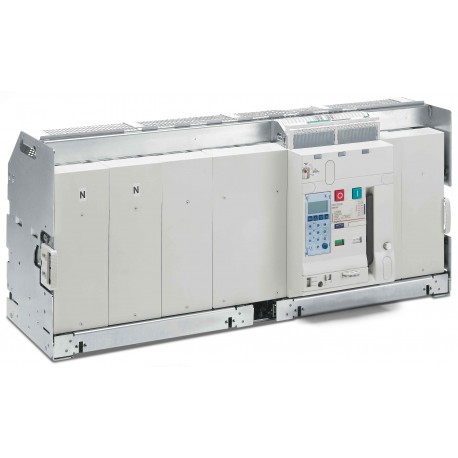

LEGRAND 028963 028963 LEGRAND DMX3 6300 L SECT 4POLOS TO 6300 A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028963 LEGRAND DMX3 6300 L SECT 4POLOS TO 6300 A

028963

028963

LEGRAND

1 Pcs.

DMX3 6300 L SECT 4POLOS TO 6300 A Air circuit breaker DMX³ 6300 lcu 100 kA - draw-out version - 4P - 6300 A Open rack switch DMX³ 6300 - secc - lcu 100kA - 4P - ln 6300A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 028963 is a circuit-breaker designed to handle heavy electrical currents and provide dependable fault clearance in large-scale power distribution networks. These protective devices ensure operational safety by automatically disconnecting power when an overload or short circuit occurs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 12600 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 4
  • Overload release current setting (EF002336): 2520 A
  • Motor drive integrated (EF006697): Yes
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 6300 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)546.00
  • Weight (g)295 000.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³ - L 6300
  • Breaking capacity Icu 100 kA (415 V~)
  • Frame 6300
  • 4P
  • In : 6300 A
General characteristics
Air circuit breakers DMX³ 6300 - 5000 and 6300 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2
