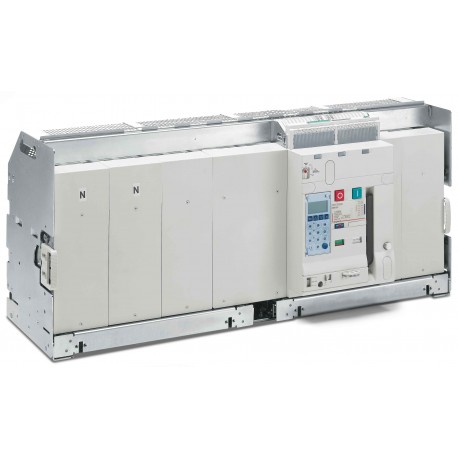

LEGRAND 028962 028962 LEGRAND DMX3 6300 L SECT 4POLOS 5000 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028962 LEGRAND DMX3 6300 L SECT 4POLOS 5000 TO

028962

028962

LEGRAND

1 Pcs.

DMX3 6300 L SECT 4POLOS 5000 TO Air circuit breaker DMX³ 6300 lcu 100 kA - draw-out version - 4P - 5000 A Open rack switch DMX³ 6300 - secc - lcu 100kA - 4P - ln 5000A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

028962 LEGRAND circuit-breaker functions as a high-capacity air or molded-case switching device designed to protect massive electrical installations from severe fault currents. Such industrial breakers ensure complete system reliability and rapid load interruption.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 10000 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 4
  • Overload release current setting (EF002336): 2000 A
  • Motor drive integrated (EF006697): Yes
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 5000 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)546.00
  • Weight (g)307 000.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³ - L 6300
  • Breaking capacity Icu 100 kA (415 V~)
  • Frame 6300
  • 4P
  • In : 5000 A
General characteristics
Air circuit breakers DMX³ 6300 - 5000 and 6300 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2
