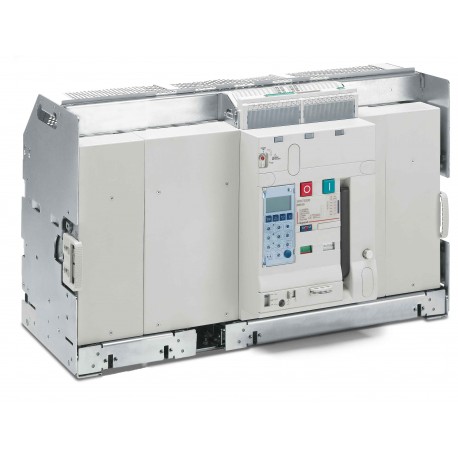

LEGRAND 028953 028953 LEGRAND DMX3 6300 L SECT 3POLOS TO 6300 A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028953 LEGRAND DMX3 6300 L SECT 3POLOS TO 6300 A

028953

028953

LEGRAND

1 Pcs.

DMX3 6300 L SECT 3POLOS TO 6300 A Air circuit breaker DMX³ 6300 lcu 100 kA - draw-out version - 3P - 6300 A Open rack switch DMX³ 6300 - sect - lcu 100kA - 3P - ln 6300A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 028953 is a circuit-breaker built for high-amperage electrical distribution networks requiring robust fault protection and reliable switching performance. Industrial circuit-breakers isolate faulty circuits to prevent equipment damage and maintain overall facility safety during electrical anomalies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 12600 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 3
  • Overload release current setting (EF002336): 2520 A
  • Motor drive integrated (EF006697): Yes
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 6300 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)546.00
  • Weight (g)249 000.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³ - L 6300
  • Breaking capacity Icu 100 kA (415 V~)
  • Frame 6300
  • 3P
  • In : 6300 A
General characteristics
Air circuit breakers DMX³ 6300 - 5000 and 6300 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2
