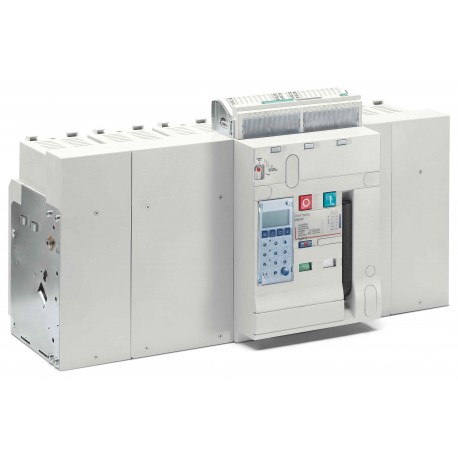

DMX3 6300 L FIXED 3POLOS 5000 TO Air circuit breaker DMX³ 6300 lcu 100 kA - fixed version - 3P - 5000 A DMX³ 6300 Open Rack Switch - Fixed - 100kA lcu - 3P - 5000A ln

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a high-capacity air circuit breaker, the 028950 LEGRAND DMX3 6300 L FIXED 3POLOS 5000 TO manages massive electrical loads and protects heavy infrastructure from catastrophic faults. Large industrial complexes and power plants depend on these systems for reliable main distribution safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 10000 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Overload release current setting (EF002336): 2000 A
  • Motor drive integrated (EF006697): Yes
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 5000 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)546.00
  • Weight (g)133 500.00
Product characteristics
Fixed version
  • Supplied with
    • 4 auxiliary contacts: NO/NC
    • rear terminals for horizontal connection with bars
    • door sealing
DMX³ - L 6300
  • Breaking capacity Icu 100 kA (415 V~)
  • Frame 6300
  • 3P
  • In : 5000 A
General characteristics
Air circuit breakers DMX³ 6300 - 5000 and 6300 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
