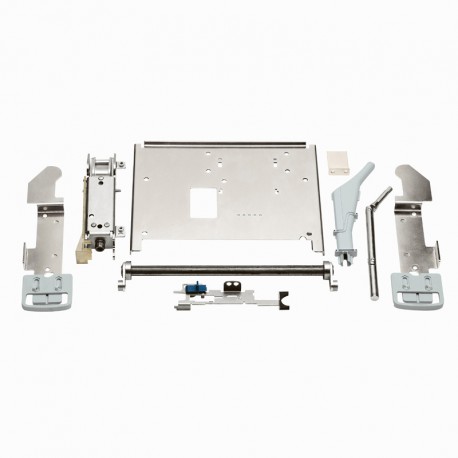

LEGRAND 028916 028916 LEGRAND DMX3 KIT TRANSF SECT 6300 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028916 LEGRAND DMX3 KIT TRANSF SECT 6300 4P

028916

028916

LEGRAND

1 Pcs.

DMX3 KIT TRANSF SECT 6300 4P Transformation kit for draw-out version - 4P - for DMX³/DMX³-I frame 3 Base for sectionable version - DMX³ 6300 size 3 - 4P

Automation > Chassis part power circuit breaker
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

028916 LEGRAND DMX3 KIT TRANSF SECT 6300 4P is a transfer section kit utilized within modular electrical distribution panels to facilitate correct phase alignment and secure mechanical coupling for high-capacity multi-pole circuit breakers. Such kits ensure structural integrity and proper busbar alignment during complex switchboard assembly and retrofitting projects. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)48.085
  • Weight (g)13 005.00
Product characteristics
Equipment for conversion of a fixed device into draw-out device
Transformation kit for draw-out version
  • 4P
  • For DMX³/DMX³-I frame 6300
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
