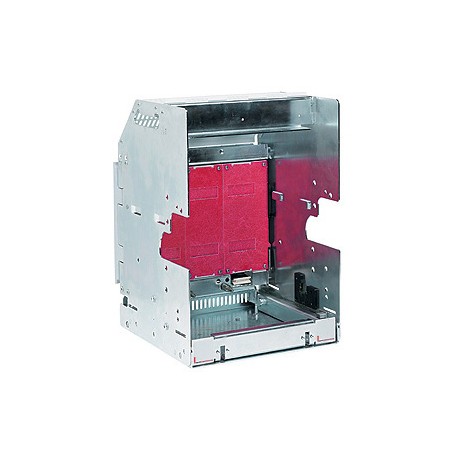

LEGRAND 028914 028914 LEGRAND DMX3 BASE V SECT 6300 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028914 LEGRAND DMX3 BASE V SECT 6300 4P

028914

028914

LEGRAND

1 Pcs.

DMX3 BASE V SECT 6300 4P Bases for draw-out devices - 4P - for DMX³/DMX³-I frame 3 Base for sectionable version - DMX³ 6300 size 3 - 4P

Automation > Chassis part power circuit breaker
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 028914 is a DMX3 BASE V SECT 6300 4P serving as a heavy-duty section base for high-amperage air circuit breakers and switchgear assemblies. Such bases provide the critical structural framework and primary busbar interface needed to handle massive electrical loads safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter: Yes
  • Version as built-in device: Yes
  • Type of electrical connection of main circuit: Screw connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)546.00
  • Weight (g)133 600.00
Product characteristics
Equipment for conversion of a fixed device into draw-out device
Bases for draw-out device
  • 4P
  • For DMX³/DMX³-I frame 6300
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
