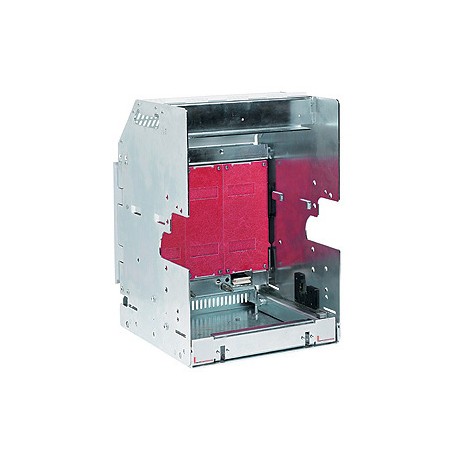

LEGRAND 028913 028913 LEGRAND DMX3 BASE V SECT 6300 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028913 LEGRAND DMX3 BASE V SECT 6300 3P

028913

028913

LEGRAND

1 Pcs.

DMX3 BASE V SECT 6300 3P Bases for draw-out devices - 3P - for DMX³/DMX³-I frame 3 Base for sectionable version - DMX³ 6300 size 3 - 3P

Automation > Chassis part power circuit breaker
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a Legrand 028913 LEGRAND DMX3 BASE V SECT 6300 3P, this heavy-duty base assembly provides the structural and electrical mounting platform for large-scale air circuit breakers. Such switchgear bases ensure secure mechanical anchoring and dependable terminal alignment for high-capacity industrial power networks.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): Yes
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)546.00
  • Weight (g)113 000.00
Product characteristics
Equipment for conversion of a fixed device into draw-out device
Bases for draw-out device
  • 3P
  • For DMX³/DMX³-I frame 6300
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
