View larger
Images are for illustrative purposes only. Please refer to data sheet for details

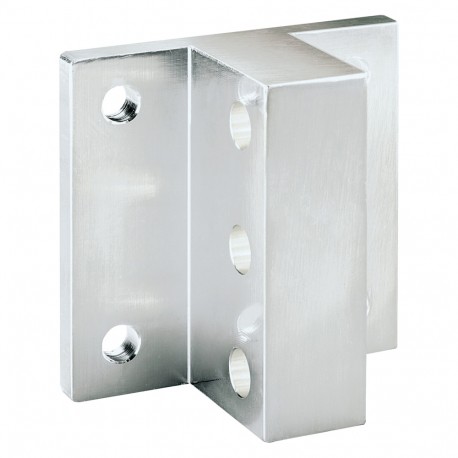

028894 LEGRAND DMX3 SHOTS POST ORIE EXT T2 3P
028894
028894
LEGRAND
1 Pcs.
DMX3 SHOTS POST ORIE EXT T2 3P
Rear terminal for DMX³ frame 2- draw-out - version -3P - vert/horiz connection
Connection for DMX³ size 2 fixed or sectionable version - vert/horiz - 3P
Automation > Accessories/spare parts for low-voltage switch technology
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)3.675
- Weight (g)6 720.00
Product characteristics
Rear terminalsFor DMX³ frame 4000 and 6300 fixed or draw-out version
- 3P
- On DMX³ fixed version:
- For vertical connection with bars
- To be fixed onto Cat.Nos 0 288 92/93 according to the number of poles
- On DMX³ draw-out version:
- For vertical or horizontal connection with bars
- To be fixed directly onto plate rear terminals of the circuit breaker
- 2 sets are required for frame 6300
General characteristics
Rear terminals for DMX³ 2500, 4000 and 6300| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Switching piece |
