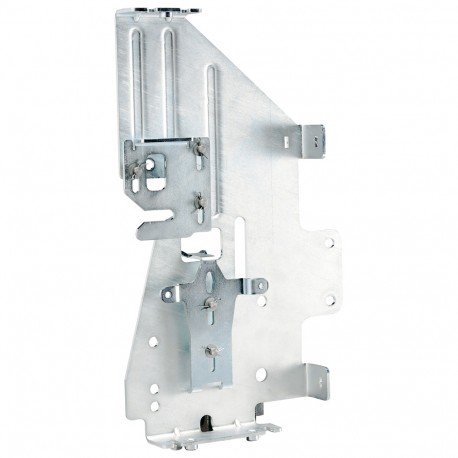

LEGRAND 028866 028866 LEGRAND DMX3 BLOCK INTERBLOQ SIZE 3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028866 LEGRAND DMX3 BLOCK INTERBLOQ SIZE 3

028866

028866

LEGRAND

1 Pcs.

DMX3 BLOCK INTERBLOQ SIZE 3 Interlock for DMX³ frame 6300 - for transfer switches Mechanical interlock mechanism for DMX³ 3P/4P - size 3

Automation > Accessories/spare parts for low-voltage switch technology
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand mechanical locking device acts as an interlock mechanism to prevent conflicting operational states between adjacent circuit breakers or draw-out modules in heavy-duty switchboards. Industrial power systems utilize these mechanical interlocks to enforce safe switching sequences and protect personnel during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Mechanical locking

More info

▲
  • Pack (number of units)1
  • Volume (dm3)8.00
  • Weight (g)2 874.00
Product characteristics
Equipment for transfer switches
  • The mechanical interlock is set up using cables and can interlock 2 or 3 devices, which may be different type in a vertical or horizontal configuration
  • The interlock unit is mounted on the right-hand side of the device
  • Cable interlock to be ordered separately (cable length to be specified according to every configuration)
  • Interlock for DMX³ frame 6300
General characteristics
Equipment for DMX³ 2500, 4000 and 6300 transfer switches
