View larger
Images are for illustrative purposes only. Please refer to data sheet for details

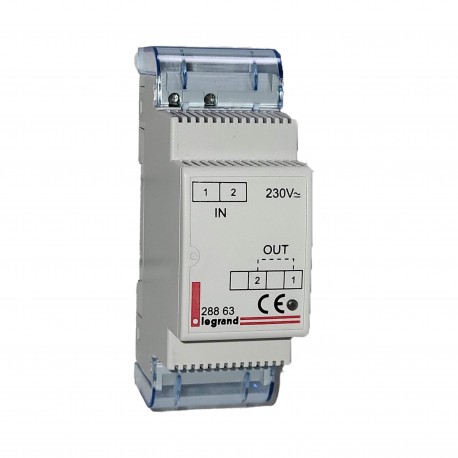

028863 LEGRAND DMX3 COIL MIN RET 230V AC/DC
028863
028863
LEGRAND
1 Pcs.
DMX3 COIL MIN RET 230V AC/DC
Delay undervoltage releases DMX³ 2500 and 4000 230 V~/=
DMX³ delay module for minimum voltage coil - 230V~/=
Automation > Under voltage coil
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.369
- Weight (g)88.00
Product characteristics
Control and signalling auxiliariesModule for delayed tripping
- To be used with above undervoltage releases
- 230 V~/=
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 207 V |
| Number of contacts as change-over contact (EF008257) | 0 |
| Delayed (EF001541) | Yes |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for power circuit breaker (EF005863) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type for actuating (EF008242) | AC/DC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for motor safety switch (EF005826) | Yes |
| Suitable for overload relay (EF001545) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 207 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 207 V |
