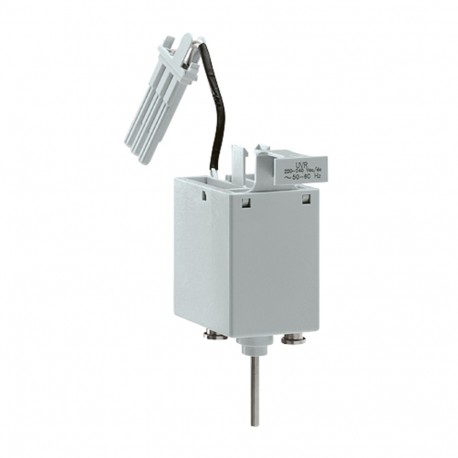

LEGRAND 028858 028858 LEGRAND DMX3 COIL MINIMUM 230V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028858 LEGRAND DMX3 COIL MINIMUM 230V AC/DC

028858

028858

LEGRAND

1 Pcs.

DMX3 COIL MINIMUM 230V AC/DC Undervoltage releases DMX³ 2500 and 4000 230 V~/= DMX³ minimum voltage trip coil - 230V~/=

Automation > Under voltage coil
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 028858 DMX3 Coil Minimum is an undervoltage release coil designed to trip heavy-duty circuit protection devices when system voltage drops below safe operational thresholds. These coils are commonly specified in electrical power distribution systems to safeguard infrastructure against brownouts and unintended re-energization.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 220 V
  • Number of contacts as change-over contact (EF008257): 0
  • Delayed (EF001541): No
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for power circuit breaker (EF005863): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Suitable for motor safety switch (EF005826): Yes
  • Suitable for overload relay (EF001545): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 220 V
  • Rated control supply voltage AC 60 Hz (EF003979): 220 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.006
  • Weight (g)479.00
Product characteristics
Control and signalling auxiliaries
Undervoltage releases
  • When the coil is de-energised, the circuit breaker will be tripped
  • 220 - 250 V~/=
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
