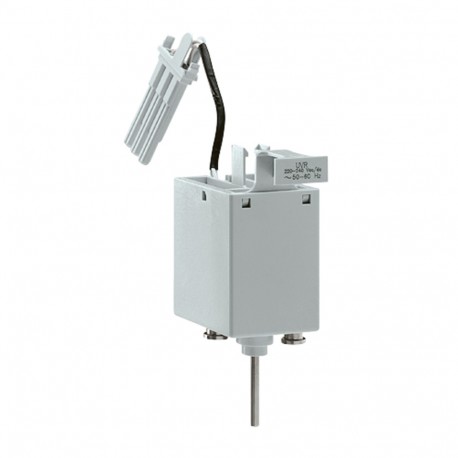

028856 LEGRAND DMX3 COIL MINIMUM 48V AC/DC
028856
028856
LEGRAND
1 Pcs.
Automation > Under voltage coil
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for integration into large-scale electrical switchgear, the Legrand DMX3 COIL MINIMUM 48V AC/DC functions as an undervoltage release mechanism to trip circuit breakers when line voltage drops below safe operating parameters. This protects industrial automation equipment from undervoltage hazards.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 48 V
- Number of contacts as change-over contact (EF008257): 0
- Delayed (EF001541): No
- Suitable for off-load switch (EF001543): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Voltage type for actuating (EF008242): AC/DC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Suitable for motor safety switch (EF005826): Yes
- Suitable for overload relay (EF001545): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 48 V
- Rated control supply voltage AC 60 Hz (EF003979): 48 V
More info
▲- Pack (number of units)1
- Volume (dm3)1.006
- Weight (g)435.00
Undervoltage releases
- When the coil is de-energised, the circuit breaker will be tripped
- 48 V~/=
