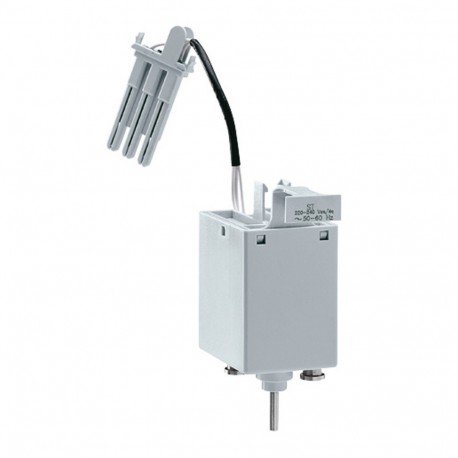

028849 LEGRAND DMX3 COIL SHOOTING 48V AC/DC
028849
028849
LEGRAND
1 Pcs.
Automation > Shunt release (for power circuit breaker)
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 028849 DMX3 coil shooting is an electromechanical tripping device designed to integrate with circuit breakers and protective switches for remote actuation. Devices of this type are commonly installed in industrial distribution panels to enable automated opening or tripping functions from a separate control signal.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 48 V
- Number of contacts as change-over contact (EF008257): 0
- Suitable for off-load switch (EF001543): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Voltage type for actuating (EF008242): AC/DC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Suitable for overload relay (EF001545): Yes
- Suitable for motor safety switch (EF005826): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 48 V
- Rated control supply voltage AC 60 Hz (EF003979): 48 V
More info
▲- Pack (number of units)1
- Volume (dm3)1.006
- Weight (g)470.00
Shunt trip
- When energised the circuit breaker will be tripped
- 48 V~/=
