View larger
Images are for illustrative purposes only. Please refer to data sheet for details

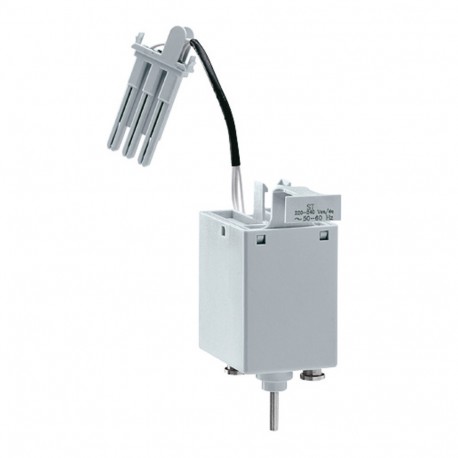

028848 LEGRAND DMX3 COIL SHOOTING 24V AC/DC
028848
028848
LEGRAND
1 Pcs.
DMX3 COIL SHOOTING 24V AC/DC
Shunt trip for DMX³ 2500 and 4000 - 24 V~/=
DMX³ Current Emission Trip Coil - 24V~/=
Automation > Shunt release (for power circuit breaker)
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)1.006
- Weight (g)435.00
Product characteristics
Control and signalling auxiliariesShunt trip
- When energised the circuit breaker will be tripped
- 24 V~/=
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for power circuit breaker (EF005863) | Yes |
| Type of electric connection (EF003961) | Other |
| Voltage type for actuating (EF008242) | AC/DC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for overload relay (EF001545) | Yes |
| Suitable for motor safety switch (EF005826) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
