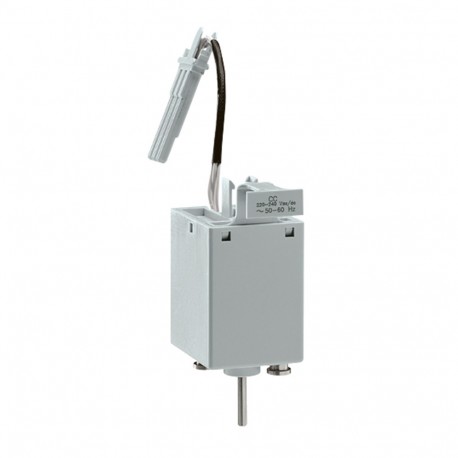

LEGRAND 028842 028842 LEGRAND DMX3 COIL CLOSURE 480V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028842 LEGRAND DMX3 COIL CLOSURE 480V AC/DC

028842

028842

LEGRAND

1 Pcs.

DMX3 COIL CLOSURE 480V AC/DC Closing coils DMX³ 2500 and 4000 - 48 V~/= DMX³ Locking Coil - 48 V~/=

Automation > Switch spool for power circuit breaker
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 028842 DMX3 COIL CLOSURE 480V AC/DC is a remote closing coil designed for motorized air circuit breakers to enable automated resetting and switching operations. Such control coils allow facility operators to safely close protective devices from a remote control room or automation system. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 48 V
  • Built as switching-on coil (EF005914): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V
  • Built as switch-off coil (EF006263): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.006
  • Weight (g)435.00
Product characteristics
Control and signalling auxiliaries
Closing coils
  • Enables remote closing of the circuit breaker if the closing spring is charged
  • 48 V~/=
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
