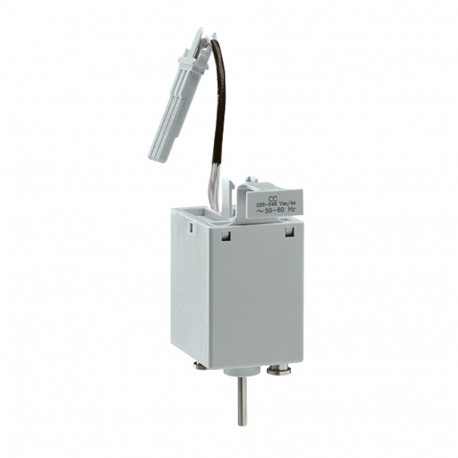

LEGRAND 028841 028841 LEGRAND DMX3 COIL CLOSING 24V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028841 LEGRAND DMX3 COIL CLOSING 24V AC/DC

028841

028841

LEGRAND

1 Pcs.

DMX3 COIL CLOSING 24V AC/DC Closing coils DMX³ 2500 and 4000 - 24 V~/= DMX³ Locking Coil - 24V~/=

Automation > Switch spool for power circuit breaker
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A circuit breaker closing coil functions as an internal electrical actuator that mechanically engages main contacts to restore power distribution safely within an industrial facility. Technicians utilize this Legrand 028841 component inside automated breaker panels to enable reliable remote switching operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 24 V
  • Built as switching-on coil (EF005914): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Built as switch-off coil (EF006263): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.006
  • Weight (g)433.00
Product characteristics
Control and signalling auxiliaries
Closing coils
  • Enables remote closing of the circuit breaker if the closing spring is charged
  • 24 V~/=
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
