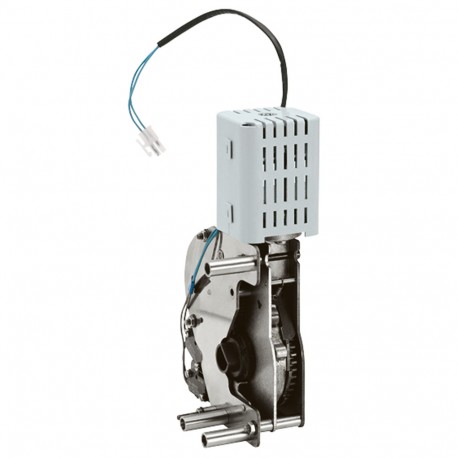

LEGRAND 028836 028836 LEGRAND DMX3 CONTROL MOTOR 110V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028836 LEGRAND DMX3 CONTROL MOTOR 110V AC/DC

028836

028836

LEGRAND

1 Pcs.

DMX3 CONTROL MOTOR 110V AC/DC Motor operator DMX³ 2500 and 4000 - 110 V~/= DMX³ Motor Operator - 110V~/=

Automation > Motor operator for power circuit-breaker
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 028836 LEGRAND DMX3 CONTROL MOTOR functions as an electromechanical drive unit designed to automatically charge and operate heavy-duty air circuit breakers. Motorized operators of this type are frequently integrated into automated electrical switchboards to enable reliable remote switching and system reset operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 110 V
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 110 V
  • Rated control supply voltage AC 60 Hz (EF003979): 110 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.96
  • Weight (g)1 840.00
Product characteristics
Control and signalling auxiliaries
Motor operators
  • To motorize a DMX³, it is possible to attach, to the motor operators, a release coil (undervoltage or trip on energising) and a closing coil
  • 110 - 130 V~/=
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
