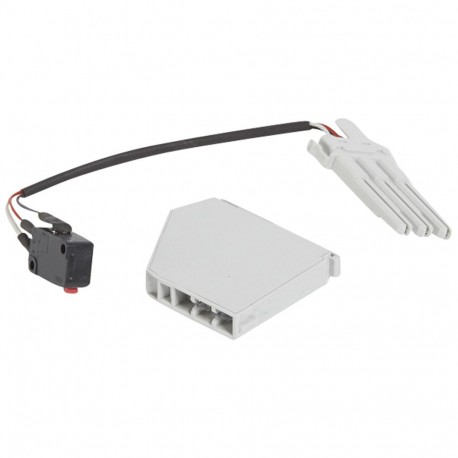

LEGRAND 028816 028816 LEGRAND DMX3 CONT SEÐALIZ AUXILIARY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028816 LEGRAND DMX3 CONT SEÐALIZ AUXILIARY

028816

028816

LEGRAND

1 Pcs.

DMX3 CONT SEÐALIZ AUXILIARY Signalling contact for auxilaries DMX³ 2500 and 4000 Signalling contact for DMX³ auxiliaries - 1 contact

Automation > Auxiliary contact block
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand signaling auxiliary contact provides remote status indication for large air circuit breakers and high-current electrical protection infrastructure. It tracks switching device positions to ensure proper interlocking routines and sequence coordination. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-15, 230 V (EF001385): 16 A
  • Number of contacts as change-over contact (EF008257): 1
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)69.00
Product characteristics
Control and signalling auxiliaries
Signalling contact for auxiliaries
  • Signalling contact for shunt trips, undervoltage releases and closing coils
General characteristics
Auxiliaries and accessories for DMX³ 2500, 4000 and 6300
