View larger
Images are for illustrative purposes only. Please refer to data sheet for details

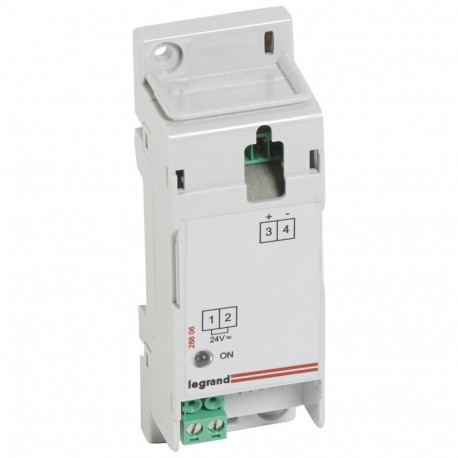

028806 LEGRAND DMX3 POWER EXT 12VDC UD PROT
028806
028806
LEGRAND
1 Pcs.
DMX3 POWER EXT 12VDC UD PROT
Power supply - external - 12 V DC - for DMX³ electronic protection units
External power supply 12 V= for DMX³
Automation > DC-power supply
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.556
- Weight (g)84.00
Product characteristics
Accessories for electronic protection units- 24 V DC external auxiliary power supply
General characteristics
Electronic protection units for DMX³ 2500, 4000 and 6300- DMX³ circuit breakers must be equipped with electronic protection units (to be ordered together for factory assembly) enabling very precise adjustments of the protection conditions, while maintaining total discrimination with downstream devices
- All protection units are equipped with batteries for powering in case of mains fault or when the breaker is open or not connected
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 105 mm |
| 3rd secondary output voltage (EF006800) | 12 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Wall mounting possible (EF003973) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Max. output current 3 (EF008286) | 0.25 A |
| Output voltage stabilized (EF003092) | No |
| Rated supply voltage AC 50 Hz (EF007076) | 21.6 V |
| Nominal value output current 3 (EF009398) | 0.25 A |
| Rated supply voltage AC 60 Hz (EF007077) | 21.6 V |
| Nominal value output current 2 (EF009397) | 0.25 A |
| Rated supply voltage DC (EF007078) | 21.6 V |
| Short-circuit-proof (EF007332) | Yes |
| Nominal value output voltage 2 (EF009394) | 12 V |
| Nominal value output voltage 1 (EF009393) | 12 V |
| Max. output current 1 (EF008284) | 0.25 A |
| Nominal value output current 1 (EF009396) | 0.25 A |
| Max. output current 2 (EF008285) | 0.25 A |
| Nominal value output voltage 3 (EF009395) | 12 V |
| Modular version (EF001126) | Yes |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Width in number of modular spacings (EF002950) | 2 |
| Direct mounting possible (EF005689) | Yes |
| 2nd secondary output voltage (EF006797) | 12 V |
| Built-in height (EF000332) | 105 mm |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| 1st secondary output voltage (EF006792) | 21.6 V |
| Secondary voltage adjustable (EF007002) | No |
| Depth (EF000049) | 50 mm |
| Width (EF000008) | 35.6 mm |
