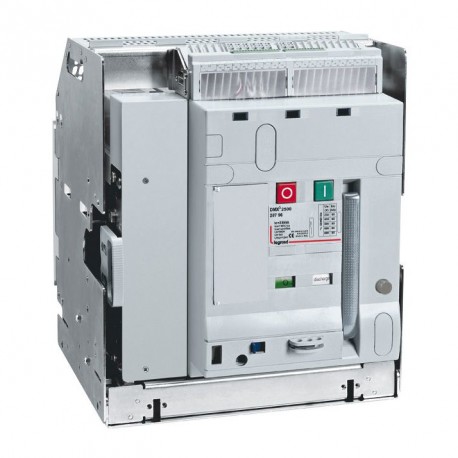

028796 LEGRAND DMX3-I 2500 EXTR 4POLOS 2500
028796
028796
LEGRAND
1 Pcs.
Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is a Legrand 028796 withdrawable switch designed for high-capacity electrical protection and main isolation in commercial power distribution. It accommodates demanding industrial environments requiring robust short-circuit withstand capabilities. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Rated short-time withstand current lcw (EF007050): 65 kA
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): Yes
- Motor drive integrated (EF006697): Yes
- Version as reversing switch (EF009408): No
- Type of control element (EF006976): Push button
- Conditioned rated short-circuit current Iq (EF001444): 65 kA
- Rated operation power at AC-23, 400 V (EF007027): 1000 kW
More info
▲- Pack (number of units)1
- Volume (dm3)192.421
- Weight (g)101 900.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- draw-out base and kit
- flat rear terminals for connection with bars
- door sealing
- Frame 2500
- 4P
- In : 2500 A
- Conform to IEC 60947-3
