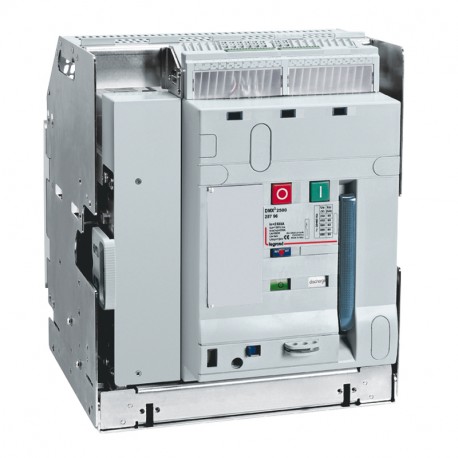

LEGRAND 028788 028788 LEGRAND DMX3-I 4000 EXTR 3POLOS 4000 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028788 LEGRAND DMX3-I 4000 EXTR 3POLOS 4000 TO

028788

028788

LEGRAND

1 Pcs.

DMX3-I 4000 EXTR 3POLOS 4000 TO Trip free switch DMX³-I 4000 - draw-out version - 3P - 4000 A DMX³ -I 4000 Load Cutting Disconnect - 3P - ln 4000A

Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 028788 LEGRAND DMX3-I 4000 EXTR 3POLOS 4000 TO operates as an industrial-grade switch disconnector designed to safely isolate electrical circuits under load in high-power distribution architectures. Engineers install these components in main switchboards to provide reliable power interruption capabilities for servicing downstream machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 85 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): Yes
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Push button
  • Conditioned rated short-circuit current Iq (EF001444): 85 kA
  • Rated operation power at AC-23, 400 V (EF007027): 1600 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)250.965
  • Weight (g)124 000.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 4000
  • Frame 4000
  • 3P
  • In : 4000 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3
