LEGRAND 028786 028786 LEGRAND DMX3-I 2500 EXTR 3POLOS 2500 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028786 LEGRAND DMX3-I 2500 EXTR 3POLOS 2500

028786

028786

LEGRAND

1 Pcs.

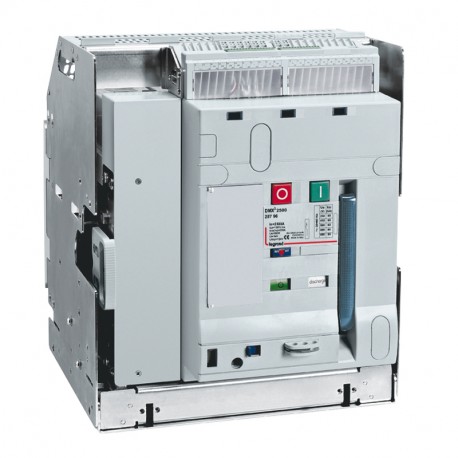

DMX3-I 2500 EXTR 3POLOS 2500 Trip free switch DMX³-I 2500 - draw-out version - 3P - 2500 A DMX³ -I 2500 Load Cutting Disconnector - 3P - ln 2500A

Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-capacity power distribution, the Legrand 028786 operates as a withdrawable switch disconnector to manage heavy electrical currents in commercial and industrial settings. Such systems allow operators to safely disconnect massive loads and protect downstream infrastructure against fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 65 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): Yes
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Push button
  • Conditioned rated short-circuit current Iq (EF001444): 65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 1000 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)86 400.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 2500
  • Frame 2500
  • 3P
  • In : 2500 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
