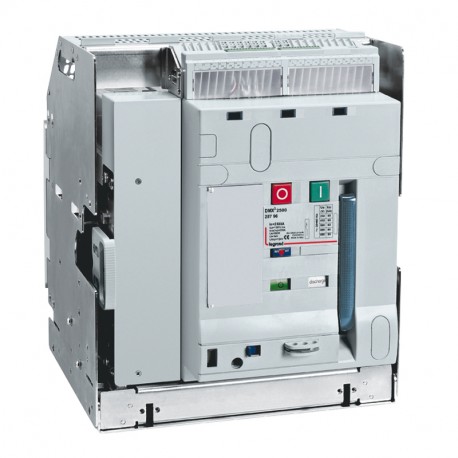

028784 LEGRAND DMX3-I 2500 EXTR 3POLOS 1600 TO
028784
028784
LEGRAND
1 Pcs.
Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 028784 is an industrial withdrawable circuit breaker and switch component designed for heavy-duty power distribution boards. Such units provide critical protection, safe isolation, and reliable load switching in high-capacity electrical infrastructures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Rated short-time withstand current lcw (EF007050): 65 kA
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device slide-in technique (withdrawable);
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): Yes
- Motor drive integrated (EF006697): Yes
- Version as reversing switch (EF009408): No
- Type of control element (EF006976): Push button
- Conditioned rated short-circuit current Iq (EF001444): 65 kA
- Rated operation power at AC-23, 400 V (EF007027): 640 kW
More info
▲- Pack (number of units)1
- Volume (dm3)192.421
- Weight (g)87 000.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- draw-out base and kit
- flat rear terminals for connection with bars
- door sealing
- Frame 2500
- 3P
- In : 1600 A
- Conform to IEC 60947-3
