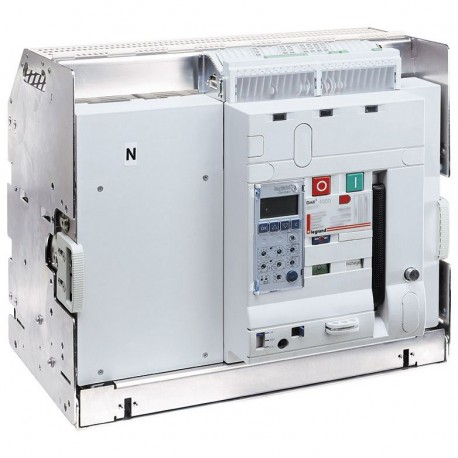

028772 LEGRAND DMX3 2500 L EXTR 4POLOS 1000 TO
028772
028772
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 028772 LEGRAND DMX3 2500 L EXTR 4POLOS 1000 TO is a withdrawable four-pole air circuit breaker engineered to provide robust fault protection and switching capabilities in large industrial electrical systems. System operators depend on these drawout circuit breakers to safeguard heavy electrical equipment and allow safe maintenance procedures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 2000 A
- Integrated earth fault protection (EF007296): Yes
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
- Number of poles (EF001391): 4
- Overload release current setting (EF002336): 400 A
- Motor drive integrated (EF006697): Yes
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 1000 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 230 V
- DIN rail (top hat rail) mounting optional (EF008904): No
More info
▲- Pack (number of units)1
- Volume (dm3)298.584
- Weight (g)169 000.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- draw-out base and kit
- flat rear terminals for connection with bars
- door sealing
- Breaking capacity Icu 100 kA (415 V~)
- Frame 4000
- 4P
- In : 1000 A
- Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
- Please ask for DMX³ order form
- Conform to IEC 60947-2
