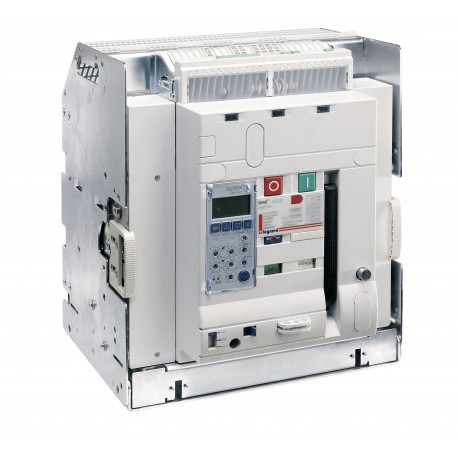

028764 LEGRAND DMX3 2500 L DEBROCH. 3P-1600 A

028764

028764

LEGRAND

1 Pcs.

DMX3 2500 L DEBROCH. 3P-1600 A Air circuit breaker DMX³ 2500 lcu 100 kA - draw-out version - 3P - 1600 A Open frame automatic switch DMX³ 2500 - secc - 100kA - 3P - 1600A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A withdrawable air circuit breaker, represented by the 028764 LEGRAND DMX3 2500 L DEBROCH. 3P-1600 A from Legrand, provides high-capacity current interruption and reliable isolation for heavy-duty electrical distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 3200 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 3
  • Overload release current setting (EF002336): 640 A
  • Motor drive integrated (EF006697): Yes
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 1600 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)298.584
  • Weight (g)132 500.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³ - L 2500
  • Breaking capacity Icu 100 kA (415 V~)
  • Frame 4000
  • 3P
  • In : 1600 A
General characteristics
Air circuit breakers DMX³ 2500 and 4000 - from 800 to 4000 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
