LEGRAND 028756 028756 LEGRAND DMX3 2500 H EXTR 4POLOS 2500 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

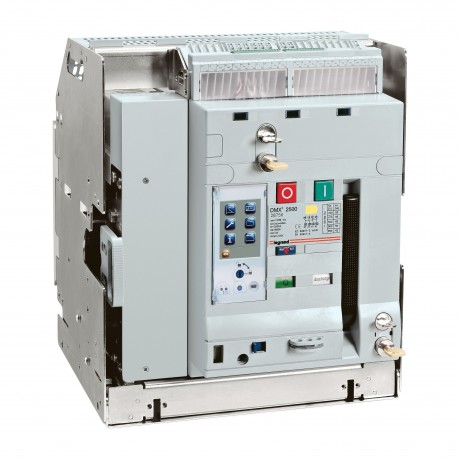

028756 LEGRAND DMX3 2500 H EXTR 4POLOS 2500

028756

028756

LEGRAND

1 Pcs.

DMX3 2500 H EXTR 4POLOS 2500 Air circuit breaker DMX³ 2500 lcu 65 kA - draw-out version - 4P - 2500 A Open frame circuit breaker DMX³ 2500 - secc - 65kA - 4P - 2500A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 028756 LEGRAND DMX3 2500 H EXTR 4POLOS 2500 functions as a high-capacity power circuit breaker engineered to protect extensive electrical distribution networks from overloads and short circuits. These protective units are commonly deployed in main low-voltage switchboards to safeguard infrastructure and ensure selective fault clearance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 5000 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 4
  • Overload release current setting (EF002336): 1000 A
  • Motor drive integrated (EF006697): Yes
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 2500 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)85 500.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³ - H 2500
  • Breaking capacity Icu 65 kA (415 V~)
  • Frame 2500
  • 4P
  • In : 2500 A
General characteristics
Air circuit breakers DMX³ 2500 and 4000 - from 800 to 4000 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
