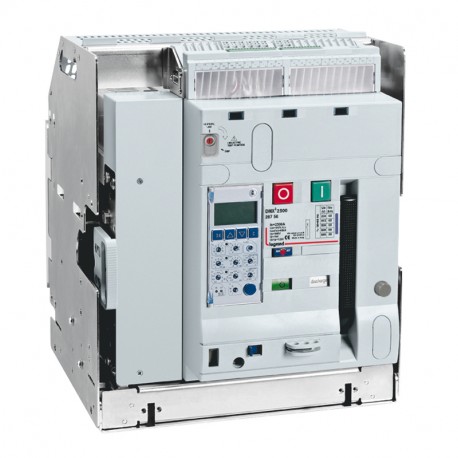

028753 LEGRAND DMX3 2500 H EXTR 4POLOS 1250 TO
028753
028753
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for major power distribution installations, this Legrand 028753 circuit-breaker offers robust overcurrent protection and fast fault interruption to safeguard heavy-duty infrastructure. These draw-out style protective units are widely used in industrial main switchboards requiring maximum uptime and safe isolation capabilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 2500 A
- Integrated earth fault protection (EF007296): Yes
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
- Number of poles (EF001391): 4
- Overload release current setting (EF002336): 500 A
- Motor drive integrated (EF006697): Yes
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 1250 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 230 V
- DIN rail (top hat rail) mounting optional (EF008904): No
More info
▲- Pack (number of units)1
- Volume (dm3)192.421
- Weight (g)85 500.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- draw-out base and kit
- flat rear terminals for connection with bars
- door sealing
- Breaking capacity Icu 65 kA (415 V~)
- Frame 2500
- 4P
- In : 1250 A
- Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
- Please ask for DMX³ order form
- Conform to IEC 60947-2
