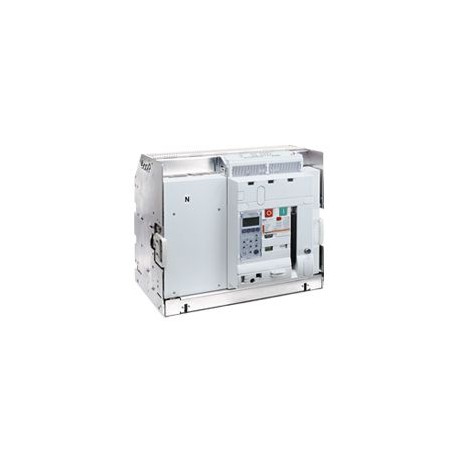

028747 LEGRAND DMX3 4000 H EXTR 3POLOS 3200
028747
028747
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A withdrawable circuit breaker produced by Legrand (part number 028747) provides high-current protection and convenient rack-in, rack-out maintenance capabilities for heavy industrial power networks. These units are commonly integrated into main switchboards to manage high electrical loads and facilitate safe isolation during servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 6400 A
- Integrated earth fault protection (EF007296): Yes
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
- Number of poles (EF001391): 3
- Overload release current setting (EF002336): 1280 A
- Motor drive integrated (EF006697): Yes
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 3200 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 230 V
- DIN rail (top hat rail) mounting optional (EF008904): No
More info
▲- Pack (number of units)1
- Volume (dm3)298.584
- Weight (g)139 000.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- draw-out base and kit
- flat rear terminals for connection with bars
- door sealing
- Breaking capacity Icu 65 kA (415 V~)
- Frame 4000
- 3P
- In : 3200 A
- Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
- Please ask for DMX³ order form
- Conform to IEC 60947-2
