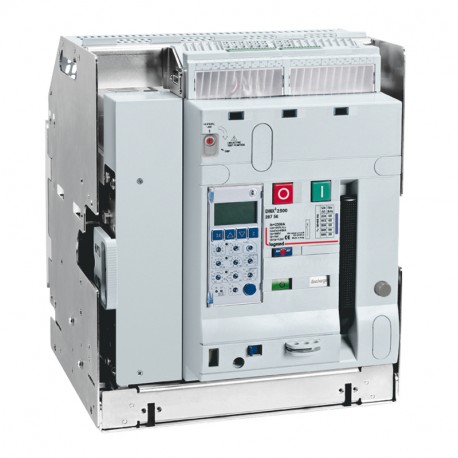

DMX3 2500 N EXTR 4POLOS 2500 Air circuit breaker DMX³ 2500 lcu 50 kA - draw-out version - 4P - 2500 A Open frame circuit breaker DMX³ 2500 - secc - 50kA - 4P - 2500A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Handle massive industrial electrical loads with the Legrand 028736 LEGRAND DMX3 2500 N EXTR 4POLOS 2500 air circuit breaker. Heavy-duty air circuit breakers protect main electrical distribution grids by interrupting high fault currents and providing reliable isolation.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 5000 A
  • Integrated earth fault protection (EF007296): Yes
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 4
  • Overload release current setting (EF002336): 1000 A
  • Motor drive integrated (EF006697): Yes
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 2500 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)80 400.00
Product characteristics
Draw-out version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • draw-out base and kit
    • flat rear terminals for connection with bars
    • door sealing
DMX³ - N 2500
  • Breaking capacity Icu 50 kA (415 V~)
  • Frame 2500
  • 4P
  • In : 2500 A
General characteristics
Air circuit breakers DMX³ 2500 and 4000 - from 800 to 4000 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
