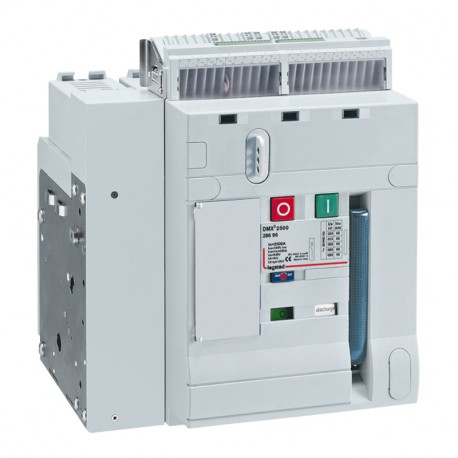

028697 LEGRAND DMX3-I 4000 FIXED 4POLOS 3200

028697

028697

LEGRAND

1 Pcs.

DMX3-I 4000 FIXED 4POLOS 3200 Trip free switch DMX³-I 4000 - fixed version - 4P - 3200 A DMX³ -I 4000 load cutting disconnector - fixed - size 2 - 4P - ln 3200A

Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand DMX3-I 4000 fixed 4-pole switch disconnector, item 028697, is constructed for heavy electrical distribution systems requiring high short-circuit withstand capabilities. Fixed switch disconnectors serve as dependable main isolators in large industrial switchboards to protect downstream equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 85 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): Yes
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Push button
  • Conditioned rated short-circuit current Iq (EF001444): 85 kA
  • Rated operation power at AC-23, 400 V (EF007027): 1280 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)298.584
  • Weight (g)105 700.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 4000
  • Frame 4000
  • 4P
  • In : 3200 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
