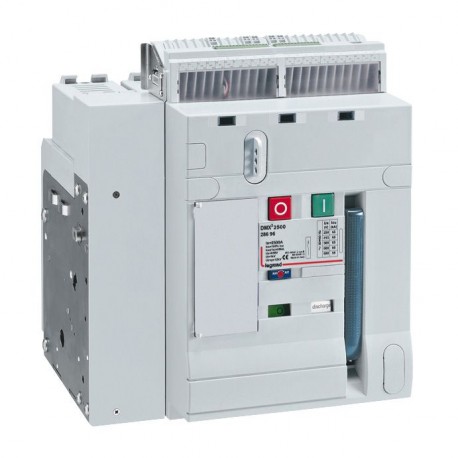

028696 LEGRAND DMX3-I 2500 FIXED 4POLOS 2500
028696
028696
LEGRAND
1 Pcs.
Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Legrand 028696 fixed switch-disconnector provides reliable circuit interruption and isolation for high-power electrical distribution systems. Heavy-duty 4-pole disconnectors are commonly integrated into industrial switchboards to safely cut off power across all phases.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Rated short-time withstand current lcw (EF007050): 65 kA
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): Yes
- Motor drive integrated (EF006697): Yes
- Version as reversing switch (EF009408): No
- Type of control element (EF006976): Push button
- Conditioned rated short-circuit current Iq (EF001444): 65 kA
- Rated operation power at AC-23, 400 V (EF007027): 1000 kW
More info
▲- Pack (number of units)1
- Volume (dm3)192.421
- Weight (g)62 000.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- flat rear terminals for connection with bars
- door sealing
- Frame 2500
- 4P
- In : 2500 A
- Conform to IEC 60947-3
