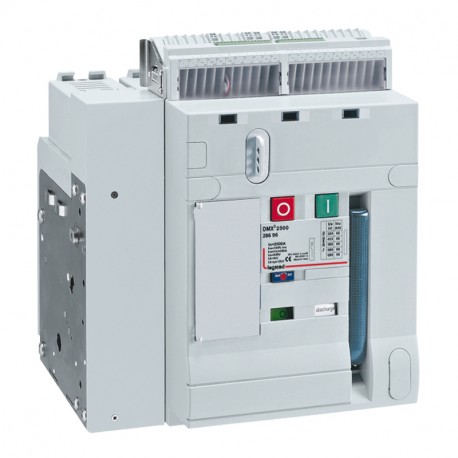

LEGRAND 028695 028695 LEGRAND DMX3-I 2500 FIXED 4POLOS 2000 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028695 LEGRAND DMX3-I 2500 FIXED 4POLOS 2000 TO

028695

028695

LEGRAND

1 Pcs.

DMX3-I 2500 FIXED 4POLOS 2000 TO Trip free switch DMX³-I 2500 - fixed version - 4P - 2000 A DMX³ -I 2500 load cutting disconnector - fixed - size 1 - 4P - ln 2000A

Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 028695 DMX3-I switch disconnector handles high-amperage electrical isolation in large-scale commercial and industrial power distribution systems. These robust circuit devices are built for integration into heavy switchboard frameworks to protect infrastructure during servicing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 65 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): Yes
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Push button
  • Conditioned rated short-circuit current Iq (EF001444): 65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 800 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)65 400.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 2500
  • Frame 2500
  • 4P
  • In : 2000 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3
