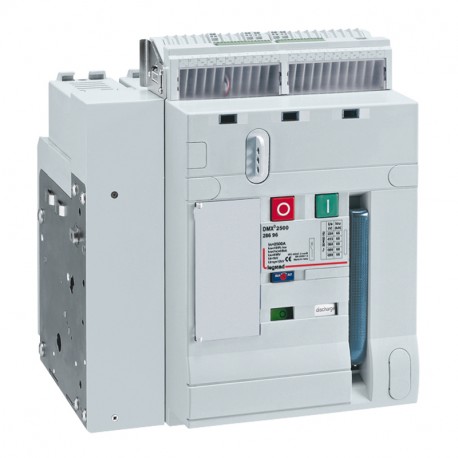

028687 LEGRAND DMX3-I 4000 FIXED 3POLOS 3200
028687
028687
LEGRAND
1 Pcs.
Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 028687 fixed switch-disconnector acts as a high-capacity master control device used to interrupt large electrical loads in heavy industrial switchboards. These robust units ensure safe physical separation and emergency shutdown capability for extensive electrical networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Rated short-time withstand current lcw (EF007050): 85 kA
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): Yes
- Motor drive integrated (EF006697): Yes
- Version as reversing switch (EF009408): No
- Type of control element (EF006976): Push button
- Conditioned rated short-circuit current Iq (EF001444): 85 kA
- Rated operation power at AC-23, 400 V (EF007027): 1280 kW
More info
▲- Pack (number of units)1
- Volume (dm3)298.584
- Weight (g)75 800.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- flat rear terminals for connection with bars
- door sealing
- Frame 4000
- 3P
- In : 3200 A
- Conform to IEC 60947-3
