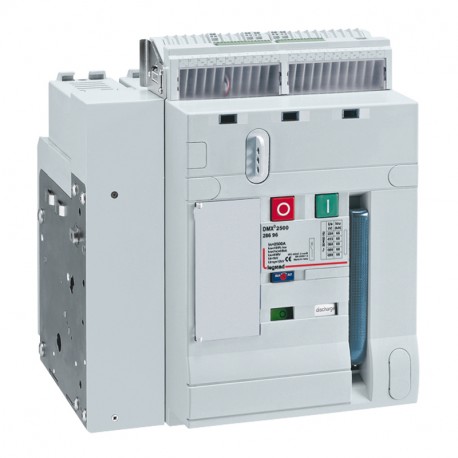

LEGRAND 028685 028685 LEGRAND DMX3-I 2500 FIXED 3POLOS 2000 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028685 LEGRAND DMX3-I 2500 FIXED 3POLOS 2000 TO

028685

028685

LEGRAND

1 Pcs.

DMX3-I 2500 FIXED 3POLOS 2000 TO Trip free switch DMX³-I 2500 - fixed version - 3P - 2000 A DMX³ -I 2500 load cutting disconnector - fixed - size 1 - 3P - ln 2000A

Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 028685 is a fixed 3-pole circuit breaker and switch component built for robust electrical distribution networks. High-current industrial breakers safeguard plant infrastructure and heavy machinery by breaking massive fault currents under short-circuit conditions.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 65 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): Yes
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Push button
  • Conditioned rated short-circuit current Iq (EF001444): 65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 800 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)53 200.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 2500
  • Frame 2500
  • 3P
  • In : 2000 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3
