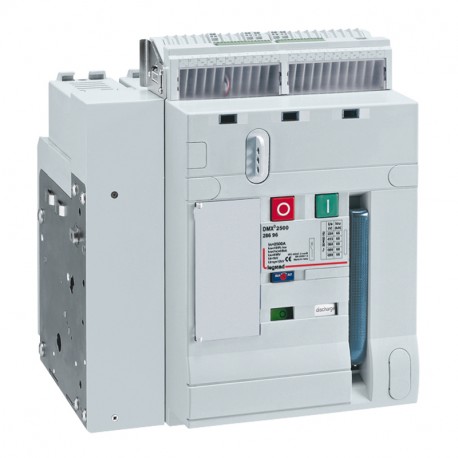

LEGRAND 028684 028684 LEGRAND DMX3-I 2500 FIXED 3POLOS 1600 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028684 LEGRAND DMX3-I 2500 FIXED 3POLOS 1600 TO

028684

028684

LEGRAND

1 Pcs.

DMX3-I 2500 FIXED 3POLOS 1600 TO Trip free switch DMX³-I 2500 - fixed version - 3P - 1600 A DMX³ -I 2500 load cutting disconnector - fixed - size 1 - 3P - ln 1600A

Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 028684 DMX3-I fixed switch disconnector is engineered for high-capacity electrical distribution systems requiring robust short-circuit resilience and reliable fault interruption. Large frame circuit breakers and disconnectors are essential in commercial and industrial infrastructure for protecting main busbars and isolating massive electrical loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 65 kA

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)63 000.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 2500
  • Frame 2500
  • 3P
  • In : 1600 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
