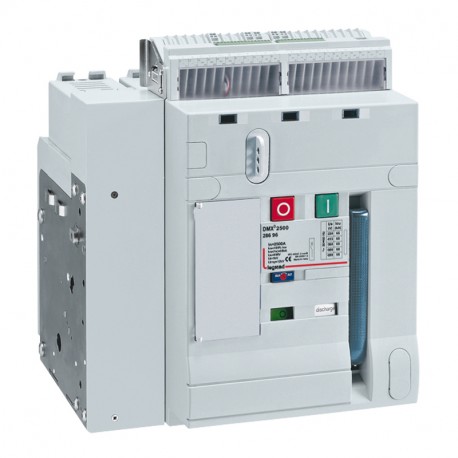

DMX3-I 2500 FIXED 3POLOS 1250 TO Trip free switch DMX³-I 2500 - fixed version - 3P - 1250 A DMX³ -I 2500 load cutting disconnector - fixed - size 1 - 3P - ln 1250A

Connectors > Switch disconnector
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

028683 LEGRAND DMX3-I 2500 FIXED 3POLOS 1250 TO is a fixed-construction air circuit breaker and switch device utilized for high-capacity electrical network protection and isolation. Large commercial and industrial power distribution systems rely on these robust units to interrupt high fault currents safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 65 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): Yes
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Push button
  • Conditioned rated short-circuit current Iq (EF001444): 65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 500 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)54 200.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 2500
  • Frame 2500
  • 3P
  • In : 1250 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
