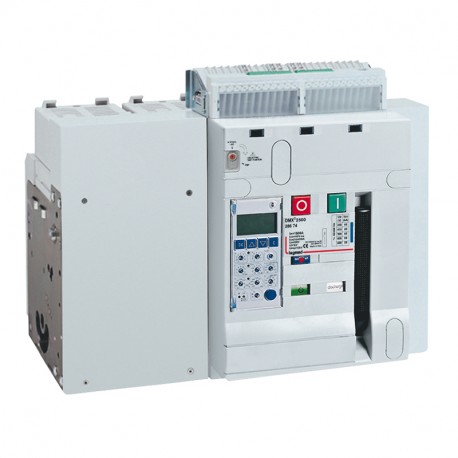

028665 LEGRAND DMX3 2500 L FIXED 3POLOS 2000 TO
028665
028665
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Large industrial facilities depend on high-capacity air circuit breakers like the Legrand 028665 LEGRAND DMX3 2500 L FIXED 3POLOS 2000 TO to manage primary electrical feeds and safeguard systems against heavy faults. This device ensures secure power isolation and automatic interruption during overcurrent events.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 4000 A
- Integrated earth fault protection (EF007296): Yes
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Overload release current setting (EF002336): 800 A
- Motor drive integrated (EF006697): Yes
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 2000 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 230 V
- DIN rail (top hat rail) mounting optional (EF008904): No
More info
▲- Pack (number of units)1
- Volume (dm3)298.584
- Weight (g)89 000.00
- Supplied with
- 4 auxiliary contacts: NO/NC
- rear terminals for horizontal connection with bars
- door sealing
- Breaking capacity Icu 100 kA (415 V~)
- Frame 4000
- 3P
- In : 2000 A
- Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
- Please ask for DMX³ order form
- Conform to IEC 60947-2
